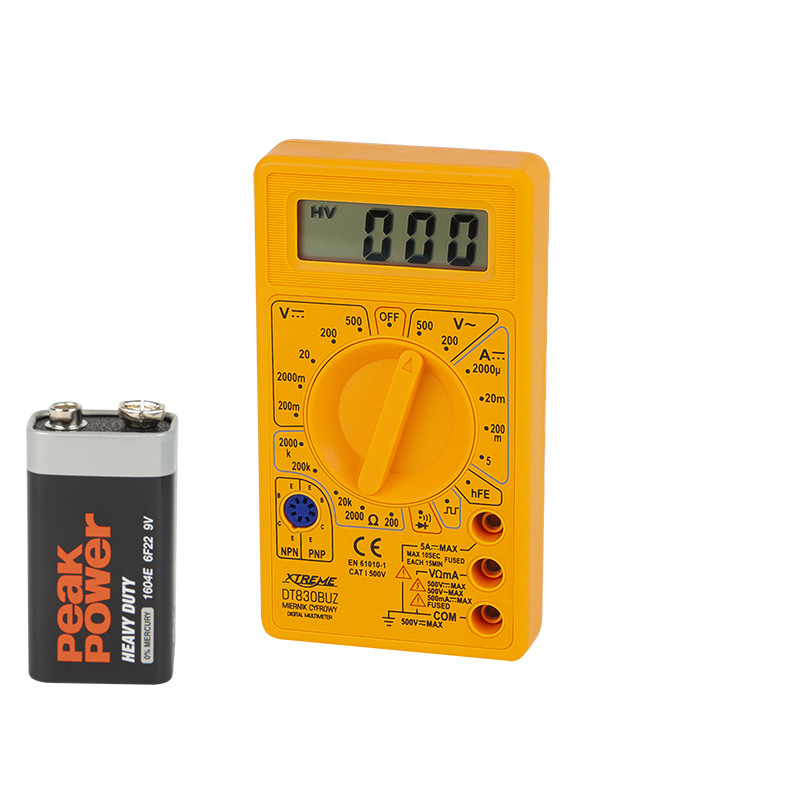

50-001- Digital mätare dt830buz xtreme

Universal digital multimeter XTREME with a clear and readable LCD display. A high-quality device that will be appreciated by every user, whether using it as a hobby or professionally. Thanks to its compact size, the meter does not take up much space and can be taken practically anywhere. **DIRECT CURRENT VOLTAGE (DC):** Range: 200mV Resolution: 100uV Accuracy: +/-(0.5%+3D) Range: 2000mV Resolution: 1mV Accuracy: +/-(0.8%+5D) Range: 20V Resolution: 10mV Accuracy: +/-(0.8%+5D) Range: 200V Resolution: 100mV Accuracy: +/-(0.8%+5D) Range: 1000V Resolution: 1V Accuracy: +/-(1.0%+5D) **DIRECT CURRENT INTENSITY (DC):** Range: 2000uA Resolution: 1uA Accuracy: +/-(1.8%+2D) Range: 20mA Resolution: 10uA Accuracy: +/-(1.8%+2D) Range: 200mA Resolution: 100uA Accuracy: +/-(2.0%+2D) Range: 10A Resolution: 10mA Accuracy: +/-(2.0%+10D) **ALTERNATING CURRENT VOLTAGE (AC):** Range: 200V Resolution: 100mV Accuracy: +/-(2%+10D) Range: 750V Resolution: 1V Accuracy: +/-(2%+10D) **RESISTANCE:** Range: 200Ω Resolution: 0.1Ω Accuracy: +/-(1.0%+10D) Range: 2000Ω Resolution: 1Ω Accuracy: +/-(1.0%+4D) Range: 20KΩ Resolution: 10Ω Accuracy: +/-(1.0%+4D) Range: 200KΩ Resolution: 100Ω Accuracy: +/-(1.0%+4D) Range: 2000KΩ Resolution: 1KΩ Accuracy: +/-(1.0%+4D) **Specification:** Power supply: 9V battery Display: LCD, range up to 1999 Sampling frequency: 2 times per second Measurement method: double integral A/D converter Range exceeding indication: only the digit "1" on the screen Polarity indication: for negative display "-" Operating temperature: 0 degrees C ~ 30 degrees C Storage temperature: -10 degrees C ~ 50 degrees C Low battery indication: battery icon on the screen Dimensions: 126x70x26mm Weight with battery: 108g Dedicated connectors: CAT II 600V Direct voltage measurement: 200mV – 1000V in 5 ranges Alternating voltage measurement: 200V – 750V in 2 ranges Direct current measurement: 200uA – 10A in 4 ranges Resistance measurement: 200 – 2MΩ Temperature measurement: NO hFE transistor measurement + diode testing: YES Audible continuity tester: YES Basic accuracy: +/- (0.5% + 2 digits)
